Description

🔩 Key Features:

• ✅ Engineered for NQ Wireline Drilling Systems – Designed to fit seamlessly within NQ inner tube head assemblies and meet industry-standard specifications.

• ✅ Durable Alloy Construction – Withstands axial and torsional stress, drilling fluid exposure, and repeated impact during descent and retrieval.

• ✅ Precision-Machined Contact Surfaces – Provides accurate, repeatable landing for consistent inner tube performance and minimal wear.

• ✅ Corrosion-Resistant Coating – Finished to resist rust, chemical corrosion, and abrasion in extreme drilling environments.

• ✅ Critical for Safe Core Recovery – Ensures inner tube is properly seated, allowing for clean, uncontaminated core extraction.

⚙️ Function in Core Drilling:

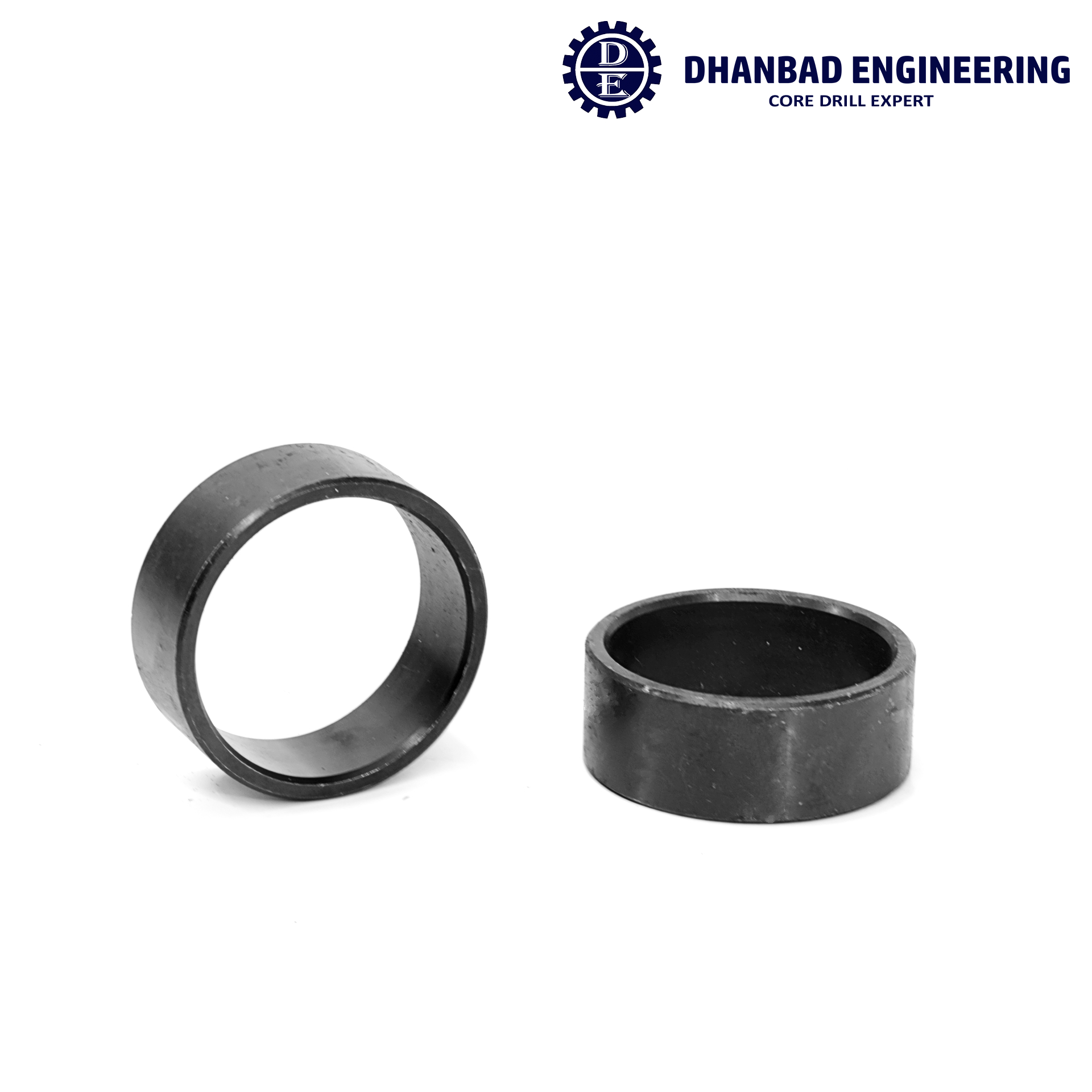

The Landing Ring:

• Forms a positive stop or seating point for the inner tube inside the outer tube

• Maintains axial alignment for accurate core sample retrieval

• Helps ensure the latches engage correctly

• Prevents inner tube over-travel during descent

• Reduces wear and misalignment between core barrel components

Without a properly functioning landing ring, your inner tube may misalign or fail to engage, risking lost core samples and damaging other parts of the assembly.

📐 Specifications & Compatibility:

• Standard fit for NQ-size inner tube head assemblies

• Compatible with most major wireline core drilling systems

• Also available for HQ and PQ sizes upon request

🧱 Applications:

• Mineral exploration and diamond core drilling

• Geotechnical site investigations

• Surface and underground wireline drilling operations

• Ideal for high-precision core recovery in all ground conditions

🌍 Why Drilling Experts Trust Our Landing Rings:

Our NQ landing rings are manufactured to strict engineering tolerances and quality standards, ensuring:

• Long service life

• Consistent landing performance

• Compatibility with standard and custom assemblies

• Rapid delivery for field replacements
