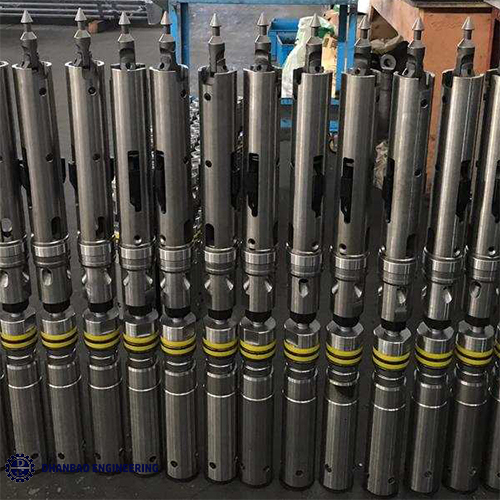

Inner Tube Head Assembly
Inner Tube Head Assembly – Essential Component for Core Drilling Operations
Durable and Reliable Assembly for Efficient Core Retrieval
Perfect for Mineral Exploration, Geotechnical Drilling, and Core Sampling
✅ Product Overview:
The Inner Tube Head Assembly is a crucial component in core drilling operations. It is designed to provide secure connection and efficient core recovery when used in conjunction with the core barrel. This assembly ensures that the core samples are safely contained and retrieved from the borehole, providing valuable geological insights. It connects to the inner tube of the core barrel to secure the core samples during drilling, making it an essential part of mineral exploration, geotechnical investigations, and core sampling.
The Inner Tube Head Assembly is built with high-quality materials to withstand the stresses of drilling and maintain the integrity of the core sample during the retrieval process. It features easy-to-operate mechanisms that reduce downtime and enhance overall drilling efficiency.
The head assembly maintains latching and also spearpoint mechanism to grant insertion and bringing back of the inner–tube assembly, a bearing assembly to let on the inner – tube to remain stationary and avert sample damage while driling, fluid pressure operating indications and fluid control valves. All head assemblies integrate a shut off valve assembly which maintains a fluid pressure signal to drill operator, revealing a full or blocked inner–tube.
Description
⚙️ Key Features:
-
🔒 Secure Core Containment: Effectively holds core samples during drilling, preventing core loss and ensuring safe retrieval.
-
🛠️ Durable Construction: Built with high-strength steel or alloy, this assembly is designed to endure the harsh conditions of drilling environments.
-
🔄 Efficient Core Recovery: Provides a reliable connection to the core barrel for smooth and fast recovery of core samples.
-
🏗️ Corrosion-Resistant Coating: Features a corrosion-resistant finish to extend its operational lifespan, especially in harsh environments.
-
🔧 Easy Operation: Designed for quick assembly and disassembly, minimizing downtime during drilling operations.
-
🌧️ Versatile Compatibility: Works with various core barrel configurations and is compatible with wireline systems.
📏 Specifications:
-
Material: Constructed from high-strength steel or alloy for maximum durability and resistance to wear.
-
Thread Type: Compatible with standard core barrel threads, available in multiple sizes for easy integration.
-
Compatibility: Works seamlessly with a range of core barrel systems, including NQ, HQ, and PQ sizes.
-
Weight: Optimized for the weight-to-strength ratio, ensuring ease of handling while maintaining durability.
-
Corrosion Resistance: Finished with a corrosion-resistant coating for improved longevity and performance.
🛒 Why Choose the Inner Tube Head Assembly?
-
✔️ Secure Core Sample Retrieval: Provides a secure connection to the core barrel, ensuring safe and efficient core recovery.
-
✔️ Durable & Long-Lasting: Constructed with high-strength materials to endure the toughest drilling conditions, reducing the need for replacements.
-
✔️ Versatile Compatibility: Suitable for various core barrel sizes, making it a versatile tool for different drilling setups.
-
✔️ Corrosion-Resistant: Features a durable, corrosion-resistant finish, ideal for harsh drilling environments.
-
✔️ Easy Maintenance & Operation: Designed for simple assembly and quick disassembly, minimizing operational downtime.
