BQ CORE BARREL HEAD

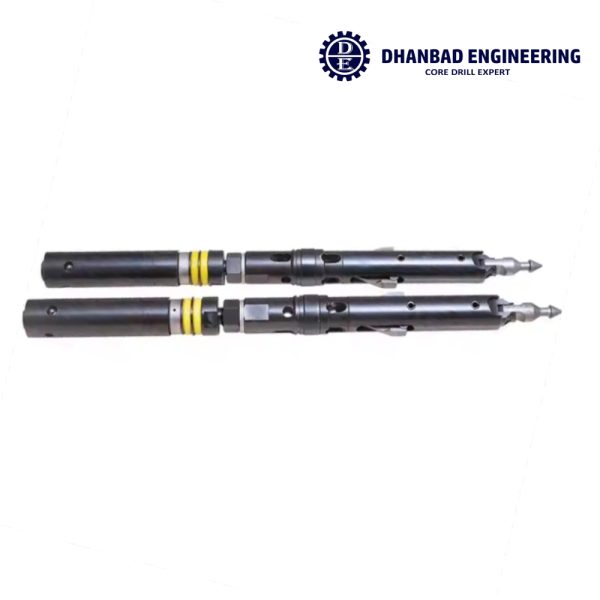

BQ Core Barrel Head
BQ Core Barrel Head – Reliable Core Drilling Replacement Component
The BQ Core Barrel Head is a precision-engineered component used in BQ wireline core drilling systems for efficient core recovery during mineral exploration, geological investigation, mining, and drilling operations. Designed to work as an essential part of the BQ core barrel assembly, the core barrel head provides reliable operation, secure connection, and smooth handling of the core barrel during drilling and core retrieval.
Manufactured with high-quality materials and accurate machining, our BQ Core Barrel Head is designed to withstand the demanding conditions encountered in deep-hole and continuous core drilling. Its robust construction provides excellent durability, dimensional stability, and dependable performance during repeated drilling cycles.
Description
Key Features
- Precision-manufactured for BQ wireline core barrel systems
- Robust construction for demanding drilling conditions
- Accurate machining for proper assembly and fitment
- Designed for reliable core recovery operations
- High-strength construction for extended service life
- Smooth and dependable operation during core retrieval
- Suitable for replacement and maintenance requirements
- Manufactured with attention to thread and mating dimensions
- Resistant to mechanical wear under regular drilling conditions
- Available for domestic and export requirements
BQ Core Barrel Head Applications
The BQ Core Barrel Head is suitable for a wide range of drilling applications, including:
- Mineral exploration
- Geological exploration
- Mining exploration drilling
- Diamond core drilling
- Wireline core drilling
- Geotechnical investigation
- Ore body evaluation
- Underground exploration
- Surface exploration drilling
- Core sample recovery
Role of the BQ Core Barrel Head
The core barrel head is an important part of the wireline core barrel system. It connects and supports various components of the core barrel assembly and contributes to the controlled movement and retrieval of the inner tube during wireline drilling.
A properly manufactured core barrel head helps maintain correct alignment between the components and supports smooth operation throughout the drilling cycle. Its robust design is particularly important in applications where the drilling equipment is subjected to vibration, impact, high rotational loads, and repeated retrieval cycles.
Precision Manufacturing
Our BQ Core Barrel Heads are manufactured using precision machining processes to maintain critical dimensions and mating surfaces. Proper dimensional control is essential for achieving accurate assembly with compatible core barrel components.
Special attention is given to:
- Thread accuracy
- Overall dimensional accuracy
- Mating surfaces
- Bore and concentricity
- Surface finish
- Strength and durability
- Component interchangeability
This helps provide reliable performance and reduces the possibility of premature wear caused by improper fitment.
Durable Construction for Drilling Operations
Core drilling equipment operates under challenging conditions, including continuous vibration, abrasive drilling environments, impact loading, and repeated assembly and disassembly. The BQ Core Barrel Head is manufactured to provide the durability required for these applications.
Its strong construction helps withstand the mechanical stresses associated with core drilling while providing dependable service during regular drilling and core recovery operations.
Replacement BQ Core Barrel Head
The BQ Core Barrel Head is suitable as a replacement component for worn, damaged, or extensively used core barrel assemblies. Replacing damaged components at the appropriate time can help maintain drilling efficiency and prevent unnecessary wear to connected components.
Before placing an order, customers should confirm the core barrel type, thread configuration, dimensions, and required component specifications to ensure proper compatibility.
Product Specifications
| Specification | Details |
|---|---|
| Product Name | BQ Core Barrel Head |
| Type | Wireline Core Barrel Component |
| Size | BQ |
| Application | Core Drilling |
| Drilling Method | Wireline / Diamond Core Drilling |
| Material | High-Strength Material |
| Manufacturing | Precision Machined |
| Usage | New Assembly / Replacement |
| Application Industry | Mining & Geological Exploration |
Why Choose Our BQ Core Barrel Head?
- Designed for professional core drilling applications
- Precision-machined construction
- Reliable fit and assembly
- Durable under demanding drilling conditions
- Suitable for continuous wireline drilling operations
- Consistent dimensional accuracy
- Ideal for maintenance and replacement requirements
- Suitable for mining and mineral exploration projects
- Available for bulk and export orders
Order BQ Core Barrel Head
Looking for a reliable BQ Core Barrel Head for your wireline core drilling equipment? DHANBAD ENGINEERING manufactures and supplies core drilling accessories and replacement components for mining, mineral exploration, geological investigation, and drilling applications.
Contact us with your required quantity, specifications, dimensions, or existing component details for compatibility confirmation and quotation.
Frequently Asked Questions
What is a BQ Core Barrel Head?
A BQ Core Barrel Head is an essential component of a BQ wireline core barrel assembly used for core drilling and core sample recovery.
Where is a BQ Core Barrel Head used?
It is used in mineral exploration, mining, geological investigation, diamond drilling, and other wireline core drilling applications.
Is the BQ Core Barrel Head available as a replacement part?
Yes. It can be supplied as a replacement component for compatible BQ core barrel assemblies.
What should I check before ordering?
Confirm the core barrel size, thread configuration, dimensions, and other mating component specifications to ensure compatibility.
Can BQ Core Barrel Heads be supplied for export?
Yes, BQ Core Barrel Heads and other core drilling components can be supplied for domestic as well as international requirements.
Our BQ Core Barrel Assembly is expertly designed for wireline diamond drilling applications, delivering maximum core recovery and protection, even in fractured or delicate formations. Built from premium-grade materials, the BQ system ensures long service life, operational efficiency, and reliable sample quality at every depth.
BQ Core Barrel Overview:
-
Core Size: 36.4 mm (1.43 inches)
-
Hole Size: 60 mm (2.36 inches)
-
System Type: Wireline, Double Tube
-
Standard Length: 5 or 10 feet
-
Material: High-strength alloy steel, heat-treated for maximum durability
-
Applications: Mineral exploration, geotechnical investigation, and environmental drilling
The double tube system is designed to protect the core during drilling by isolating it inside an inner tube, minimizing disturbance and maximizing recovery in even broken or soft formations.
BQ Core Barrel Kit Includes:
| Part Name | Function |
|---|---|
| Head Assembly | Connects and secures the inner tube to the drill string. Guides rotation and fluid flow. |
| Inner Tube | Collects and protects the core sample during drilling. Made of hardened steel or high-grade alloy. |
| Outer Tube | Houses the inner tube; connects to the drill rods and rotates during operation. |
| Core Lifter Case | Holds the core lifter and provides a seating surface. Prevents core from slipping. |
| Core Lifter | Grips and holds the core sample during retrieval. Spring-loaded for firm core capture. |
| Locking Coupling | Secures the outer tube assembly to the drill string. |
| Adapter Coupling | Connects the core barrel to the bit, ensuring secure and efficient torque transmission. |
| Landing Ring (optional) | Helps center the inner tube assembly when landing in the hole. Improves core alignment. |
Key Features:
-
High Recovery Rate: Double tube design ensures minimal sample loss or disturbance.
-
Efficient Assembly: Quick-release mechanisms allow fast inner tube retrieval via overshot tools.
-
Durability: Heat-treated components resist wear, corrosion, and mechanical stress.
-
Compatibility: Fully compatible with standard BQ wireline systems and accessories.
Experience unmatched drilling efficiency and sample integrity with our premium BQ Core Barrel Kit.
Engineered for performance. Built for results.
