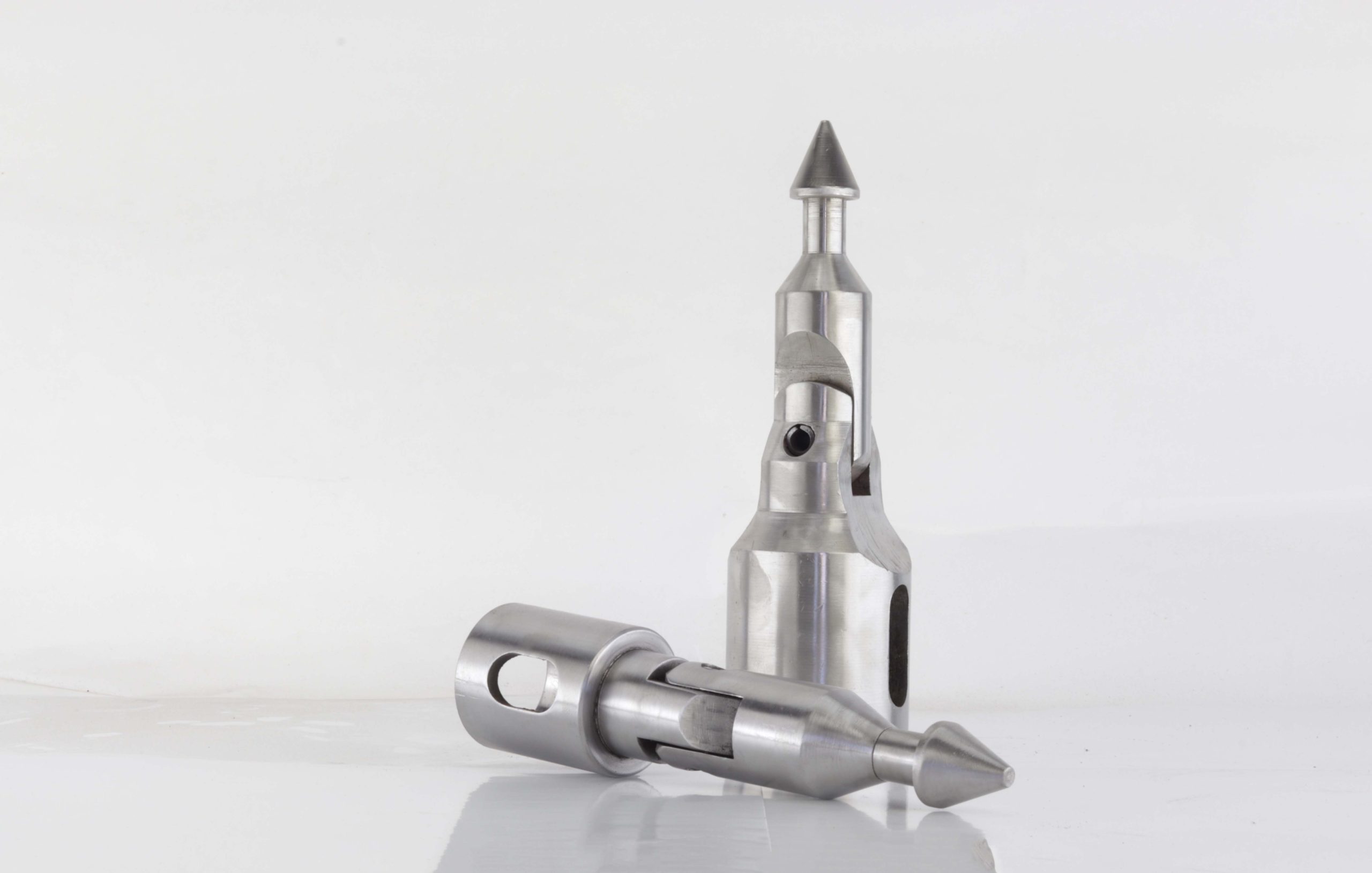

HQ Backend Assembly – Heavy-Duty Core Barrel Component for Precision Drilling
The HQ Backend Assembly is a critical component in the core barrel assembly system, designed to connect the drill string with the inner tube assembly in HQ-size core drilling operations. Engineered for hard rock exploration, geotechnical investigation, and mineral coring, this backend ensures precise alignment, smooth inner tube rotation, and long-lasting performance in rugged field environments.
Manufactured from high-strength alloy steel and machined to tight tolerances, our HQ Backend Assembly offers reliable coupling, resistance to wear, and compatibility with all standard HQ core barrel systems.
Description
✅ Key Features:
-
Threaded HQ connection for smooth integration with HQ rods and core barrels
-
Precision-machined surfaces to reduce vibration and ensure secure tube alignment
-
Durable, field-proven design for extended use in high-pressure and abrasive environments
-
Corrosion-resistant coating to protect against rust and mineral buildup
-
Built to ISO and drilling industry standards for performance and safety
🛠️ Specifications:
-
Size: HQ (Also available in NQ, PQ, BQ upon request)
-
Material: Hardened alloy or stainless steel
-
Thread Type: HQ-standard threading (custom threads available)
-
Finish: Black oxide or zinc coating (optional hard facing for abrasive conditions)
-
Use With: HQ Core Barrel Assemblies, Inner Tube Assemblies, Drill Rod Strings
🔧 Applications:
-
Core drilling for mineral exploration
-
Geotechnical site investigation
-
Environmental and water well drilling
-
Deep core recovery in hard and fractured rock formations
-
Use with triple tube and double tube systems
